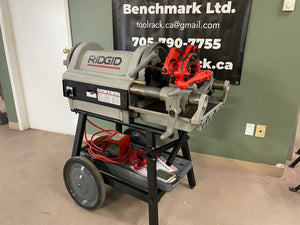

Well Maintained Used RIDGID® 1224 Pipe Threader 26092 with 150A Cart Dies Heads

  • $8,995.00
    Unit price per



Well Maintained Used RIDGID® 1224 Pipe Threader 26092 with 150A Cart Dies Heads

Threader Features:

  • Thread 1/4-inch to 2-inch pipe at 36 RPM.

  • Thread 2-1/2-inch to 4-inch pipe at 12 RPM.

  • Threads black, galvanized, plastic-coated, steel, and stainless steel pipe.

  • Will also thread IMC, heavy wall conduit.

  • Will also thread rod up to 30 Rockwell C.

  • Special capacitor-start / capacitor-run motor allows for threading despite voltage drop.

  • For use with 1/4-inch to 2-inch universal die head.

  • For use with 2-1/2-inch to 4-inch receding die head.

  • Will cut tapered or straight NPT/NPSM or BSPT/BSPP threads.

Specifications:

  • Pipe Capacity: 1/4 in. to 4 in. (6 mm to 100 mm)

  • Bolt Capacity: 1/4 in. to 2 in. (6 mm to 50 mm)

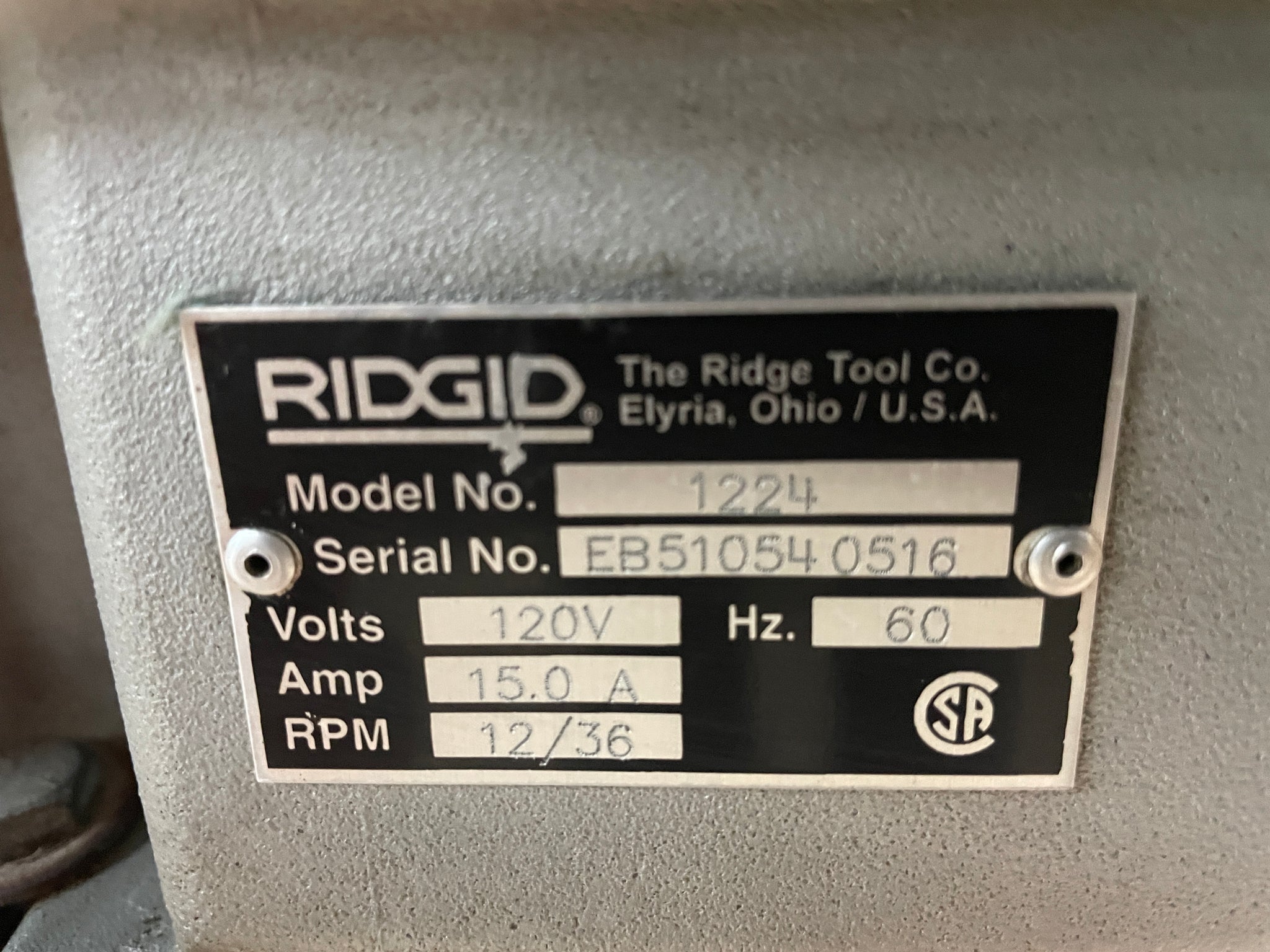

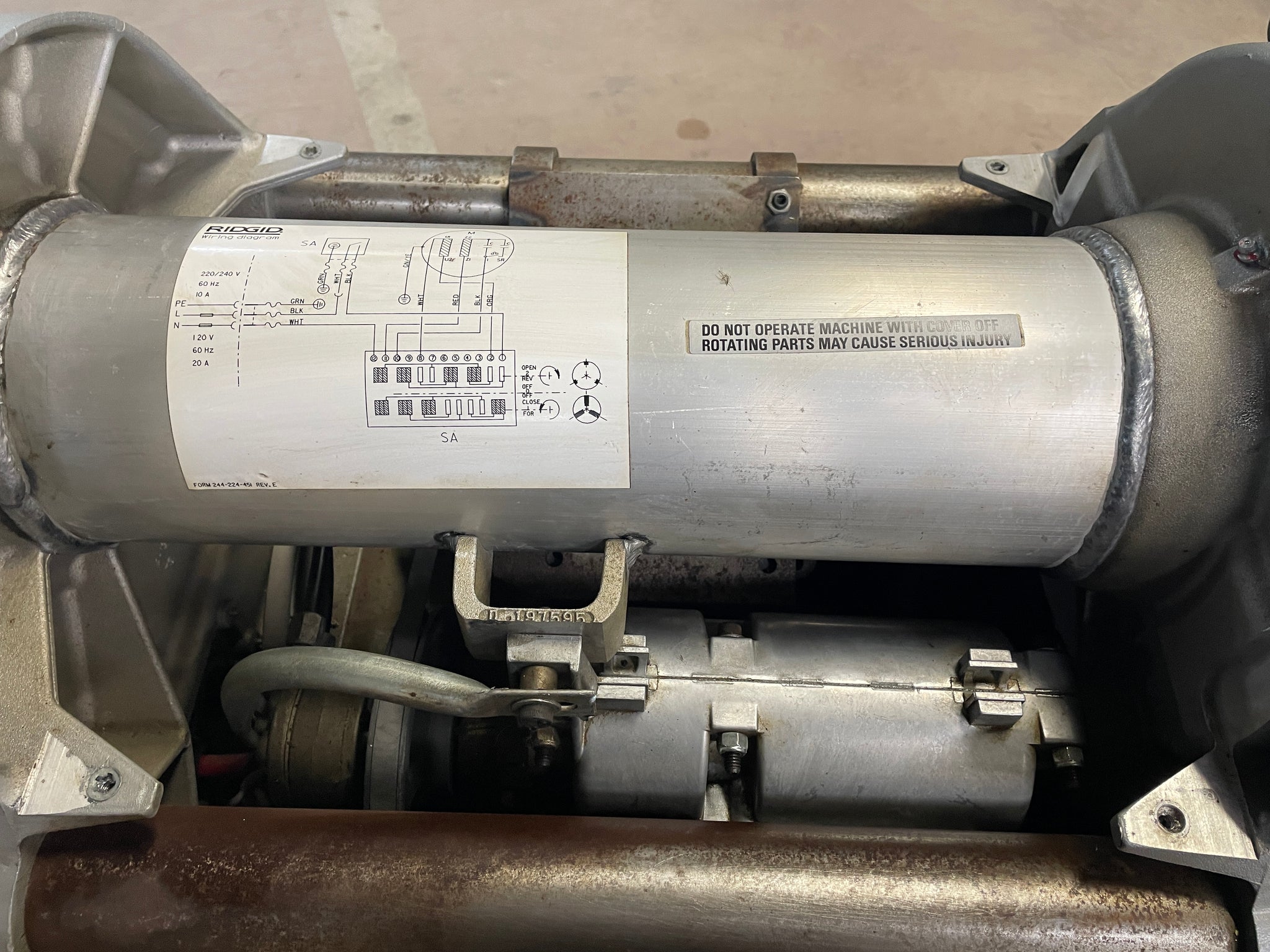

  • Motor: 1-1/2 HP, 60 Hz or 50 Hz, Induction-Type, Single-Phase

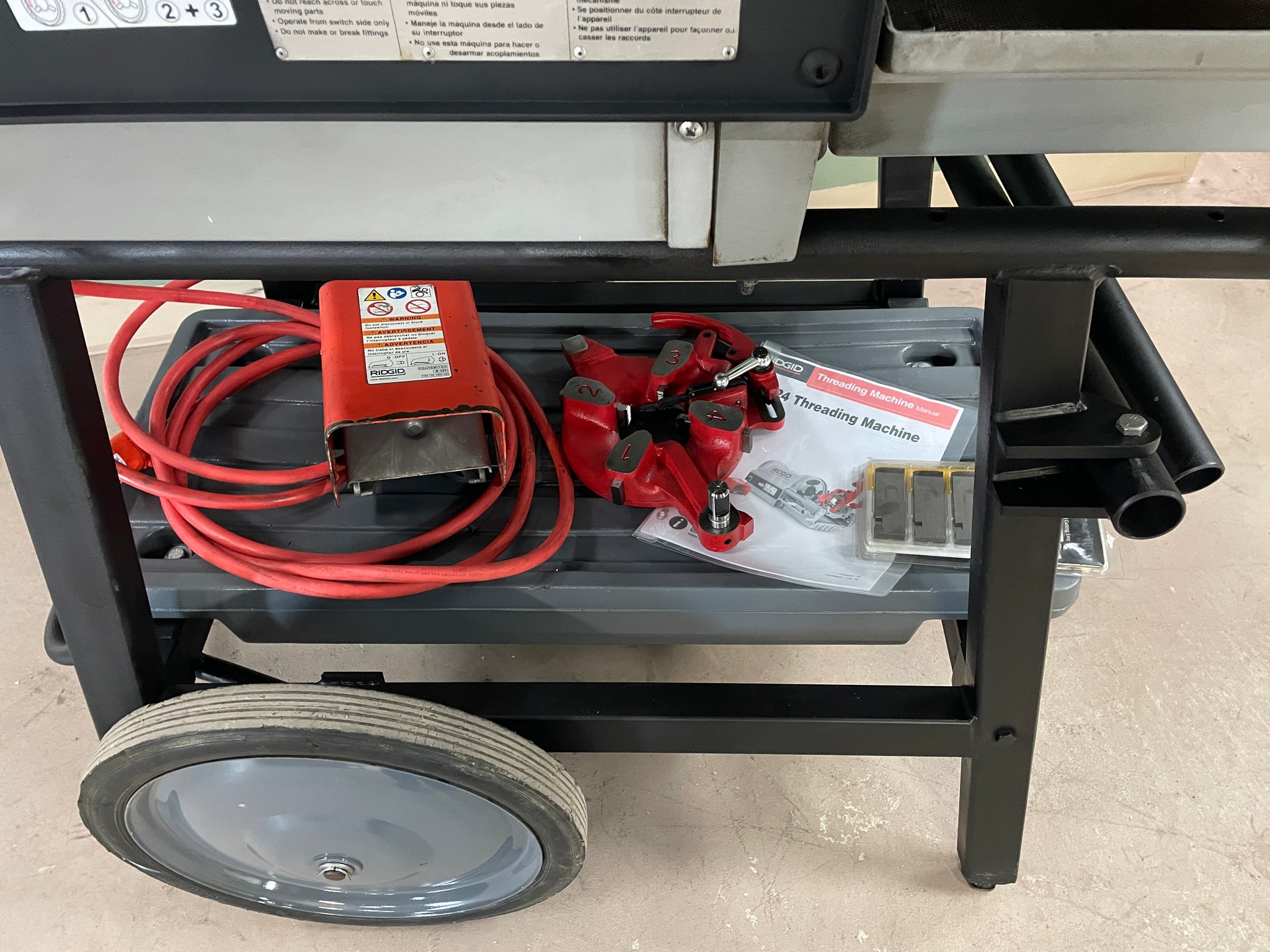

  • Motor Control: Reverse/Off/Forward controlled by heavy-duty, rotary type and integral foot switch.

  • Spindle Speed: 36 RPM or 12 RPM

  • Gear Box: Two-speed gearbox 3:1 ratio.

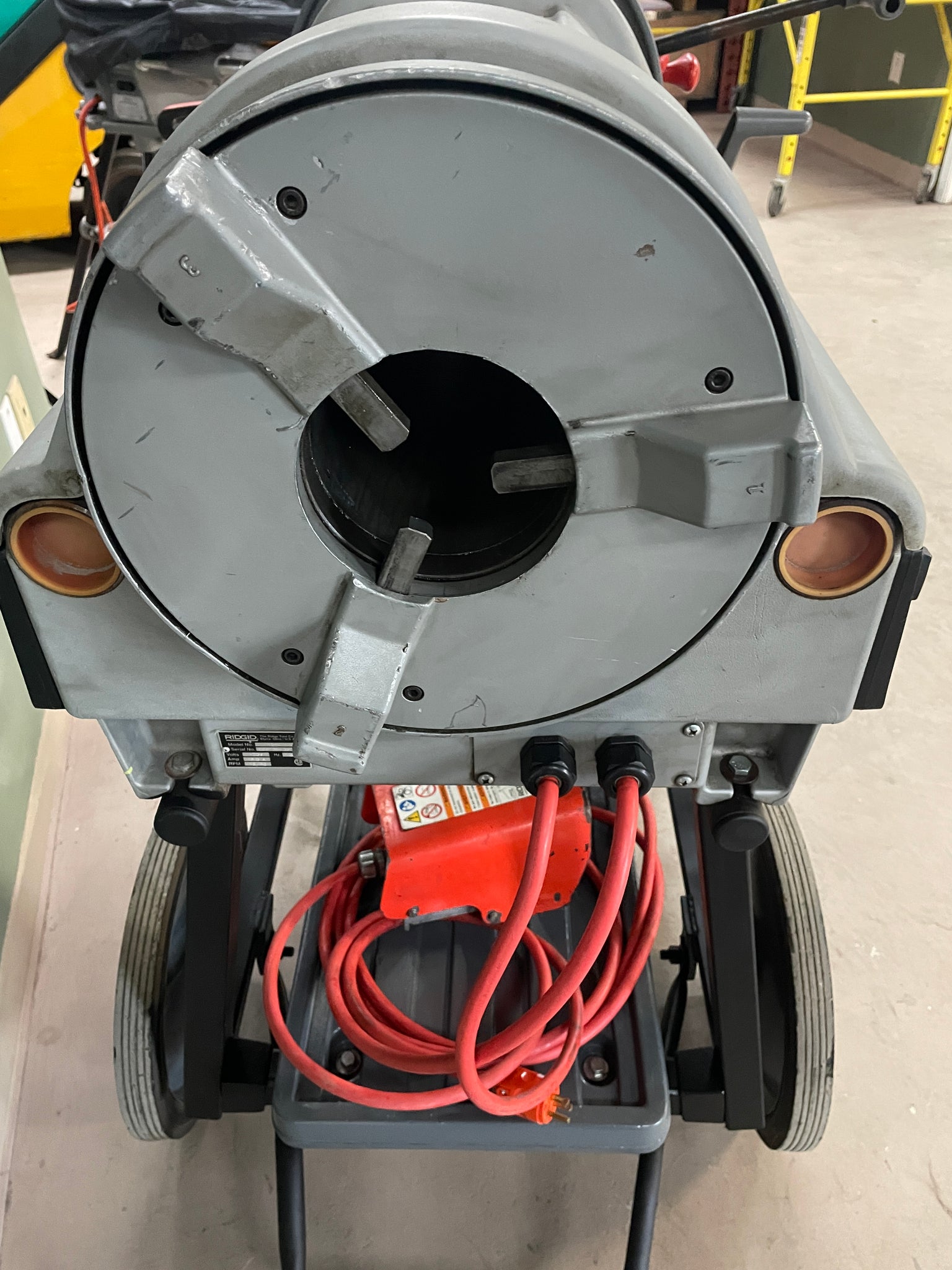

  • Chuck: Hammer-type with replaceable rocker-action jaw inserts.

  • Rear Centering Device: Cam-action

  • Oiling Pump: Self-priming, gerotor-type, with automatic reversing and constant flow.

Includes:

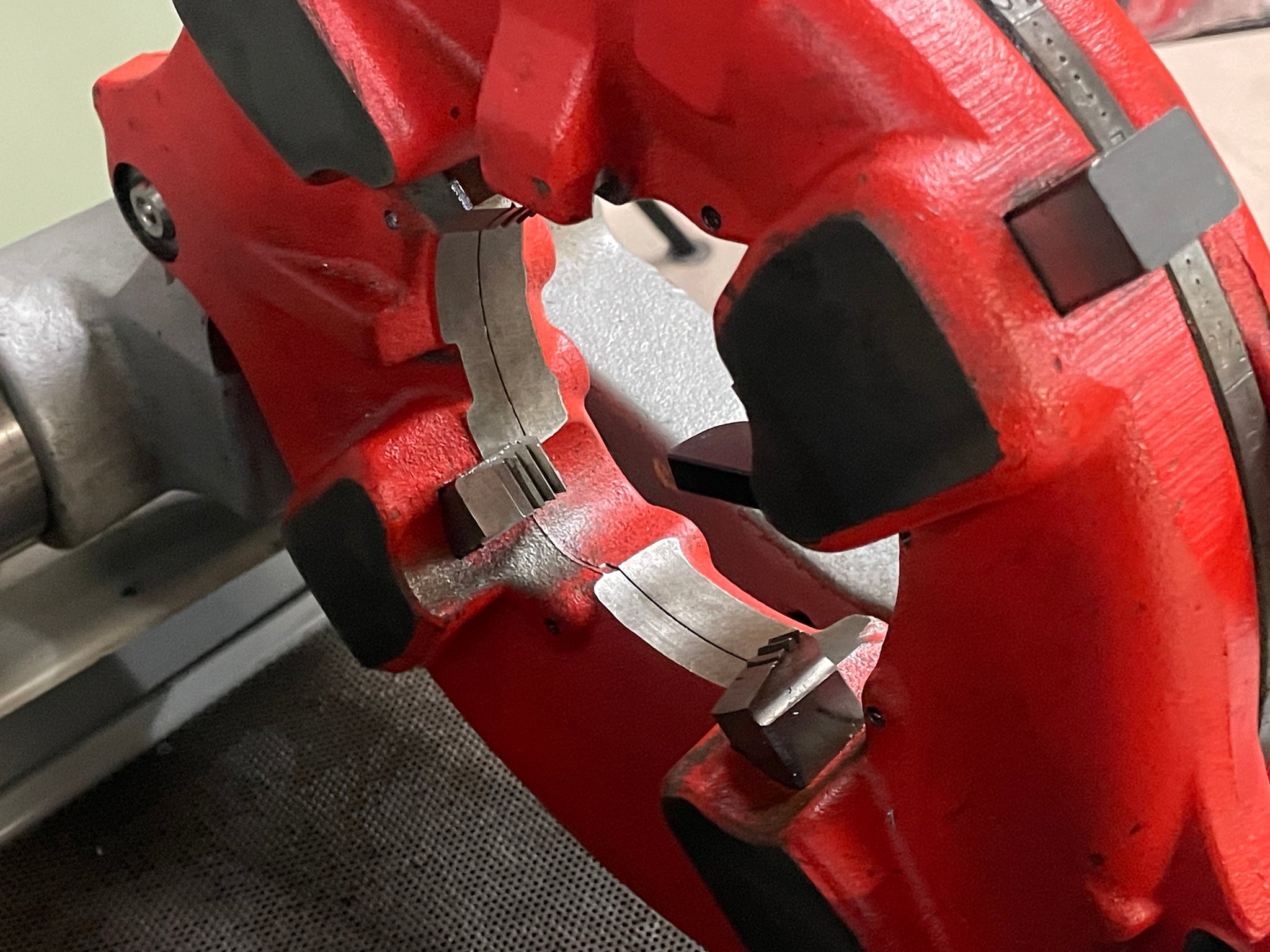

RIDGID® 714 Universal Self-Opening Die Head for 2-1/2-inch to 4-inch pipe 26152.

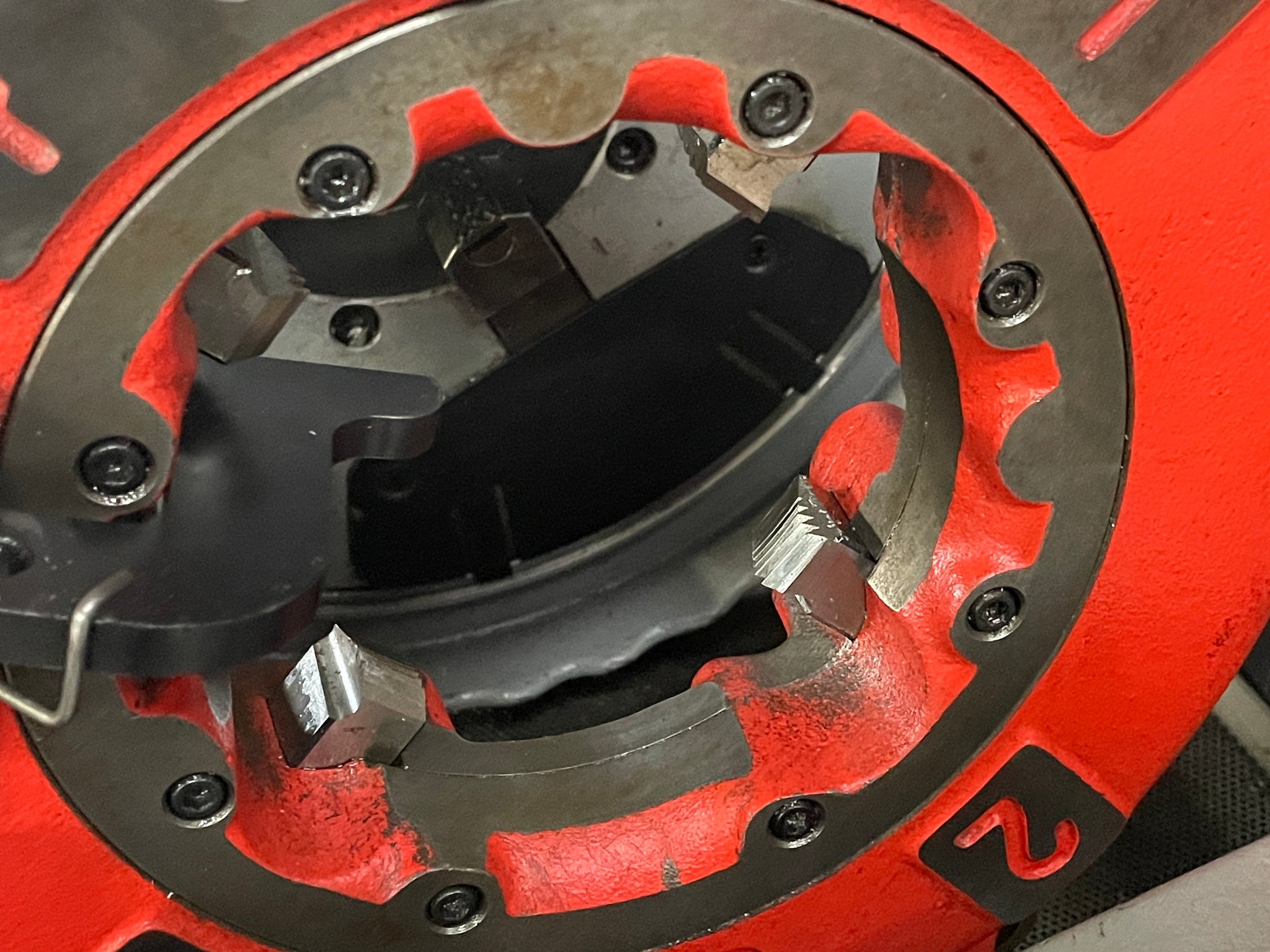

New BMC Tools 711 Die Head with Two New Sets of High Speed Steel Dies, 1/2" - 3/4" and 1"- 2"





TO VIEW A VIDEO OF THIS ITEM ON OUR YOUTUBE CHANNEL CLICK ON THIS LINK.

https://youtu.be/FC1-E9nqYUc







CHECKOUT SHIPPING IS FOR WITHIN 100 KM OF BARRIE, ONTARIO. OUTSIDE OF THIS AREA CONTACT FOR A SHIPPING QUOTE OR PICKUP FOR FREE. A SEPARATE INVOICE WILL BE SENT FOR SHIPPING IF NEEDED.
